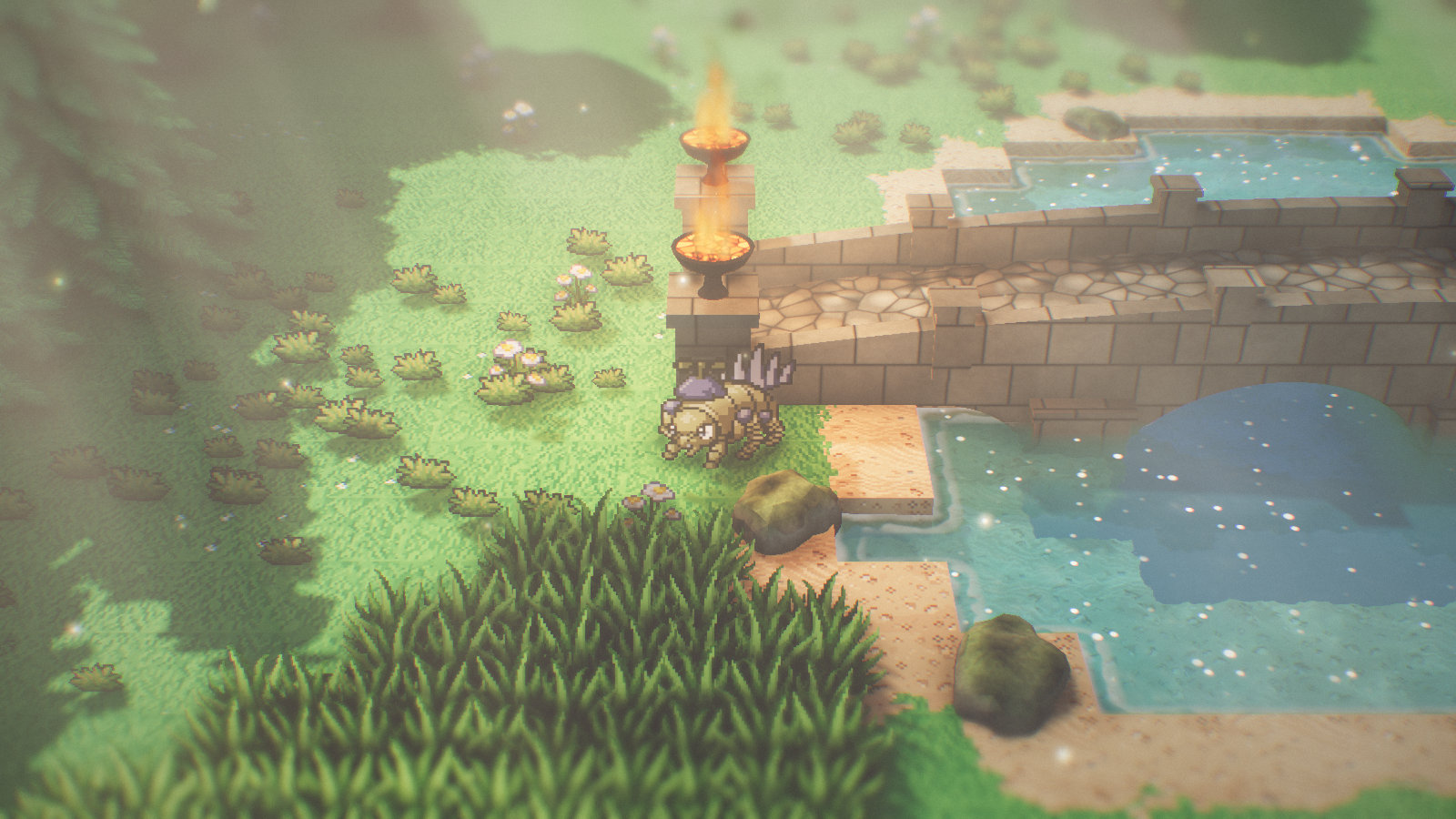

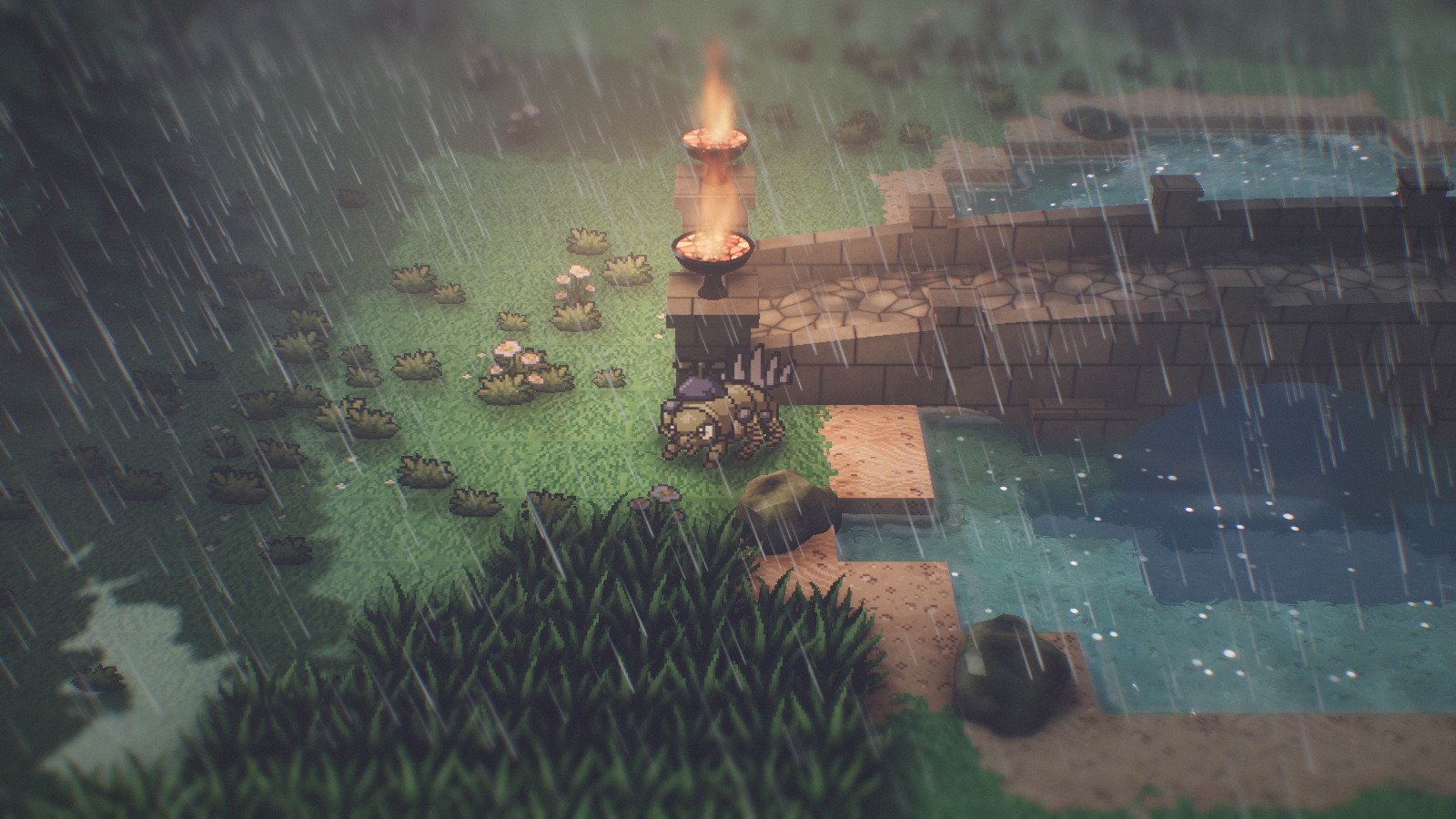

# HD-2D Engine A small C++20 / OpenGL 4.5 engine that recreates the look of Square Enix's **HD-2D** style (Octopath Traveler, Triangle Strategy, Live A Live, Dragon Quest III HD-2D): a 3D diorama world where the ground is skinned in pixel art, characters and small props (flowers, grass tufts, tall grass) are billboarded pixel-art sprites, and scenery like trees, bushes and rocks are real **3D models with higher-resolution painted textures**. Lighting, shadows, ambient occlusion, fog, god rays, water, fire, rain and particles are all rendered as high-resolution 3D effects. ![demo](docs/screenshot.png) ![heavy rain](docs/rain.png) ## What makes HD-2D look like HD-2D | Trait | How this engine does it | | --- | --- | | 3D world built from pixel-art textures | Tile-based terraced terrain (`Terrain`) with pixel-art material layers, organically jittered material borders at texel granularity, grass overhangs on cliffs, baked corner AO | | Crisp pixels at any distance | "Sharp bilinear" sampling (`pixelart.glsl`): hard texel edges when magnified, antialiased + mipmapped when minified (no `GL_NEAREST` shimmer) | | Upright 2D sprites in 3D | Characters and small props are camera-facing (Y-axis) billboards (`BillboardBatch`), planted by their lowest opaque pixel row | | 3D scenery with painted textures | Trees, bushes, rocks and the stone bridge are instanced glTF models (`ModelLibrary`, `ModelBatch`) built in Blender: leaf-card canopies with alpha-tested 1K leaf textures, rounded custom normals for soft stylized shading, sun translucency, wind sway from per-vertex weights, emissive materials (glowing coals) | | Grounded objects | Two kinds of ambient occlusion: half-res SSAO (depth-reconstructed normals, depth-aware blur, multiplied into the opaque scene before water) and a baked **ground contact occlusion** map (`GroundOcclusion`) that puts a dark core at every trunk / bush / rock base plus a soft canopy shade, applied to terrain, sprites and models near the ground | | Nothing hides the player | Scenery between the camera and the player is dithered away around the sprite | | Sprites cast/receive real shadows | Shadow pass renders sprites as **sun-facing** cards so silhouettes are never edge-on; receivers sample their own sun-facing card to avoid self-shadowing | | Miniature / diorama feel | Narrow FOV (~30°) high camera + strong depth-of-field with an extra tilt-shift band | | Soft, warm, glowing light | HDR pipeline, Karis-averaged mip-chain bloom, ACES tonemap, lift/gain grading, vignette, subtle chromatic aberration and grain | | Fog and god rays | Half-res ray-marched height fog; every step samples the sun shadow map and a sparse "canopy" beam pattern, giving physically shadowed light shafts; depth-aware upsample | | Dappled forest light | Animated canopy cookie projected along the sun direction onto every surface | | Beautiful water | Planar reflections, depth-aware refraction, per-channel absorption, analytic-derivative wave normals, shore distance field driving foam + ripples, strong HDR sun glints plus a field of twinkling point sparkles that bloom and depth of field turn into bokeh, caustics on the bottom | | Living foliage | Instanced swaying grass with wind gusts; tall grass and bushes bend and rustle away from the player (vertex shader, Pokémon-style patches); leaf flutter scales with wind strength | | High-res particles | Fireflies (also feed point lights) and dust motes that only glow inside sun shafts | | Fire | Brazier fires (`ParticleSystem::addFire`): noise-eroded additive flame tongues with a hot-core-to-red color ramp, turbulent embers, lit smoke puffs, a glow halo, and a flickering point light that also scatters into the fog | | Weather | `Weather` blends the clear look into a storm preset (weak grey sun, overcast sky, thick low fog, gusty wind): procedural world-space rain streaks (up to 18k, one draw call), ground splashes, raindrop ripple rings on the water, wet darker glossy surfaces, ambient fireflies fade out | References: Unreal Engine's [Octopath Traveler spotlight](https://www.unrealengine.com/spotlights/octopath-traveler-s-hd-2d-art-style-and-story-make-for-a-jrpg-dream-come-true), the [Octopath Traveler II interview](https://www.unrealengine.com/developer-interviews/octopath-traveler-ii-builds-a-bigger-bolder-world-in-its-stunning-hd-2d-style), the Unreal Fest Europe 2019 talk ["The Fusion of Nostalgia and Novelty"](https://www.unrealengine.com/events/unreal-fest-europe-2019/the-fusion-of-nostalgia-and-novelty-in-the-development-of-octopath-traveler), and [The Verge on HD-2D's evolution](https://www.theverge.com/entertainment/840080/square-enix-hd2d-games-octopath-dragon-quest). ## Building Requirements: CMake ≥ 3.20, a C++20 compiler, OpenGL 4.5, `libepoxy`. GLFW, GLM, stb and cgltf are used from the system when found and fetched otherwise; Dear ImGui is always fetched. ```sh # Arch / CachyOS sudo pacman -S cmake ninja glfw glm libepoxy stb cmake -S . -B build -G Ninja ninja -C build ./build/hd2d_demo ``` The asset path is baked in at configure time (`HD2D_ASSET_DIR`), so the demo can be run from any working directory. ## Demo controls | Input | Action | | --- | --- | | WASD / arrows | Move the sprite (camera-relative) | | Q / E, right-drag | Rotate / orbit camera | | Mouse wheel | Zoom | | F1 | Toggle the tuning panels (sun, sky, AO, fog, god rays, water, DoF, bloom, grading, weather) | | R | Toggle heavy rain (5 s transition) | | F5 | Hot-reload shaders | | F12 | Screenshot to `screenshots/` | | Esc | Quit | Scriptable captures (useful for look-dev and regression checks): ```sh ./build/hd2d_demo --screenshot out.png --frames 60 --pos 25,43.6 \ --sun -35,38 --yaw 20 --dist 12 --move 1,0 --rain 1 --set godRays=6 --set dof=0 ``` `--rain 0..1` starts the capture already raining. `--set` accepts: `volumetrics dof bloom reflections occluderFade ssao groundAO ssaoRadius ssaoIntensity fogDensity fogHeightFalloff godRays shaftStrength shaftCoverage shaftScale cookieStrength exposure bloomStrength tiltShift focusRange`. ## Layout ``` engine/include/hd2d/ public headers engine/src/ engine implementation assets/shaders/ GLSL (common.glsl = shared UBO + lighting helpers) assets/textures/ PixelLab-generated pixel art (terrain tiles, grass, flowers) assets/sprites/ character sprites assets/models/ scenery.glb (trees, bushes, rocks, bridge) + src/ painted textures demo/ meadow demo scene + main loop tools/pixellab.py pixel-art generator, driven by tools/assets.json tools/scenery_textures.py paints the high-res scenery textures tools/blender_scenery.py builds + exports the 3D scenery in Blender ``` ### Frame pipeline (`Renderer::render`) ```mermaid flowchart LR A[Sun shadow map
terrain, 3D models, sun-facing sprite cards] --> B[Planar reflection
half res, clipped] B --> C[HDR scene
sky, terrain, models, billboards] C --> C2[SSAO
half res, multiplied in] C2 --> D[Water
reads color/depth copies] D --> E[Volumetric fog + god rays
half res ray march, fire haze] E --> F[Fog composite
depth-aware upsample] F --> F2[Rain streaks] F2 --> G[Particles
fire, smoke, fireflies] G --> H[Depth of field
tilt-shift] H --> I[Bloom mip chain] I --> J[Tonemap + grade] ``` All per-frame data lives in one std140 uniform block (`FrameUBO` in `Renderer.cpp` ⇄ `Frame` in `common.glsl`); keep them in sync. ### Using the engine in your own project ```cpp hd2d::Window window; window.create(1600, 900, "My Game"); hd2d::Renderer renderer; renderer.init("assets/shaders", window.width(), window.height()); hd2d::Terrain terrain; /* init, setLevel/setMaterial, textures.load(...), build() */ hd2d::BillboardBatch hero; hero.loadTexture("assets/sprites/hero.png"); hero.instances.push_back({{10, 0, 10}, 0.0f, hero.sizeForDensity(32.0f)}); hero.upload(); hd2d::ModelLibrary models; models.load("assets/models/scenery.glb"); hd2d::ModelBatch oaks(models.get("oak_a")); oaks.instances.push_back({{14, 0, 12}, /*yaw*/ 0.7f, /*scale*/ glm::vec3(1.0f), /*tint*/ 1.0f}); oaks.upload(); hd2d::Scene scene; scene.terrain = &terrain; scene.billboards = {&hero}; scene.models = {&oaks}; hd2d::GroundOcclusion contactAO; // dark contact shadow at tree bases oaks.groundOcclusion = 1.0f; contactAO.build({0, 0}, {64, 64}, {&oaks}); scene.groundOcclusion = &contactAO; hd2d::ParticleSystem particles; // fire: flames, embers, smoke, glow, light particles.addFire({12, 1.5f, 12}); scene.particles = &particles; scene.volumetricLights = 1; // the fire light also glows in the fog hd2d::Weather weather; // weather.setRain(1.0f) for a storm hd2d::Camera cam; cam.target = {10, 0.7f, 10}; float time = 0.0f; while (window.pollEvents()) { time += 1.0f / 60.0f; particles.update(1.0f / 60.0f, time); scene.lights.clear(); particles.collectLights(scene.lights, 12); weather.update(1.0f / 60.0f, scene, renderer.settings); renderer.render(scene, cam, time); window.swapBuffers(); } ``` `demo/DemoScene.cpp` is the full reference: terrain generation, prop scattering, bridge walking, fires from model sockets, contact AO, water + shore field, particles, weather, player movement and collision. ## Assets ### 3D scenery (Blender) Trees, bushes, rocks and the stone bridge (with braziers) are generated procedurally so they can be tweaked and rebuilt at any time: ```sh python3 tools/scenery_textures.py # paints assets/models/src/*.png (numpy + Pillow) blender -b -P tools/blender_scenery.py # builds the models, writes assets/models/scenery.glb ``` `blender_scenery.py` can also be run inside a live Blender session (e.g. through the Blender MCP) with `exec(open(".../tools/blender_scenery.py").read())`; it only touches its own `HD2D_Scenery` collection and lays the models out side by side for inspection. Any glTF works with `ModelLibrary`; the engine relies on a few conventions: - every root node with a mesh becomes a model, looked up by node name; - `COLOR_0.rgb` multiplies the base color (tint / baked AO), `COLOR_0.a` is the wind weight (0 rigid, 1 fully swaying); - materials named `foliage*` are alpha-tested, two-sided and get wrap lighting, translucency and soft self-shadowing; others honor glTF `alphaMode` and `doubleSided`; - foliage looks best with custom normals pointing away from the canopy center; - emissive materials (glTF `emissiveFactor` / `emissiveTexture` / `KHR_materials_emissive_strength`) glow and bloom; - child empties of a model node become named **sockets** (`Model::sockets`, model space; `ModelInstance::toWorld` places them). The bridge exports `fire_0` / `fire_1` in its braziers and the demo spawns fires there. ### Pixel art (PixelLab) `tools/pixellab.py` generates pixel-art textures through the [PixelLab API](https://api.pixellab.ai/v2/llms.txt). Put your key in `.env` (see `.env.example`); assets are declared in `tools/assets.json`. ```sh python3 tools/pixellab.py --list # what exists python3 tools/pixellab.py # generate missing assets python3 tools/pixellab.py tall_grass # regenerate one asset python3 tools/pixellab.py --balance ``` - `"kind": "image"` uses `/create-image-pixflux` (transparent sprites). - `"kind": "tiles"` uses `/create-tiles-pro` (seamless top-down tiles); every variation is saved as `_.png`. A `"tile_id"` re-downloads an existing set without paying again. Pixel-art texel density is 32 px per world unit; the 256 px test sprite is 4× upscaled 64 px art, so it is rendered at 128 px per unit. ## Roadmap The demo covers the rendering core. Natural next steps for a full engine: sprite-sheet animation + 4/8-direction facing, a scene/level file format and editor, more weather (snow, thunderstorms with lightning, wind-blown leaves), time-of-day presets, cascaded shadows for large maps, audio, and an entity/component layer for gameplay.
